XH-M139 new version TPA3116D2 DC12V-24V 2X50W+100W 2.1 Channel digital Subwoofer Amplifier Board D3-005

XH-M139 new version TPA3116D2 DC12V-24V 2X50W+100W 2.1 Channel digital Subwoofer Amplifier Board D3-005


XH-M139 new version TPA3116D2 DC12V-24V 2X50W+100W 2.1 Channel digital Subwoofer Amplifier Board D3-005

It's all in one piece. Thanks to the seller. Recommend!

Digital Amplifier received in Pitere in 13 days after order. Parcel to reach your destination safely. Seller is not carried out his work, recommend.Amplifier tested for performance-its purpose perfectly!It is high time Digital Amplifiers, analog can forget…

Super. Very good sound quality. 50 watt per channel is not true. But 25-30 is \ Thermal paste under радиарютором was not. Smeared. 30 minutes with good bass and hands-free music radiator slightly warmed. (just a bit) sub 120 Watt pumps. Not farts. Seller recommend. Shipping 9 days Kazan.

It Is very fast for 15 days to Moscow region. Packed well. Until the check, check will add a.

Is not checked, later will add a


Store Name: KaisayaHIFI audio Store

Normal Price: US $15.46

Sale Price: US $10.82 (Discount: 30%)


Get it Now

Spesifications

  • Package: Yes
  • Channels: 3 (2.1)
  • Model Number: KSYXH-139
  • Brand Name: Kaisaya
  • Maximum Power Per Channel: 100W
  • Type: Professional Amplifier
  • AMP IC: TPA3116D2
  • Supply voltage: DC 12-24V
  • Output power: 50W*2+100W Subwoofer*1
  • Output Impedance: 4-8 ohm
  • Frequency range: 14-100Khz
  • SNR: 100db
  • Switch frequency: 1.2MHz
  • Size: 100*70*30mm
  • Weight: 136g

    • Descriptions

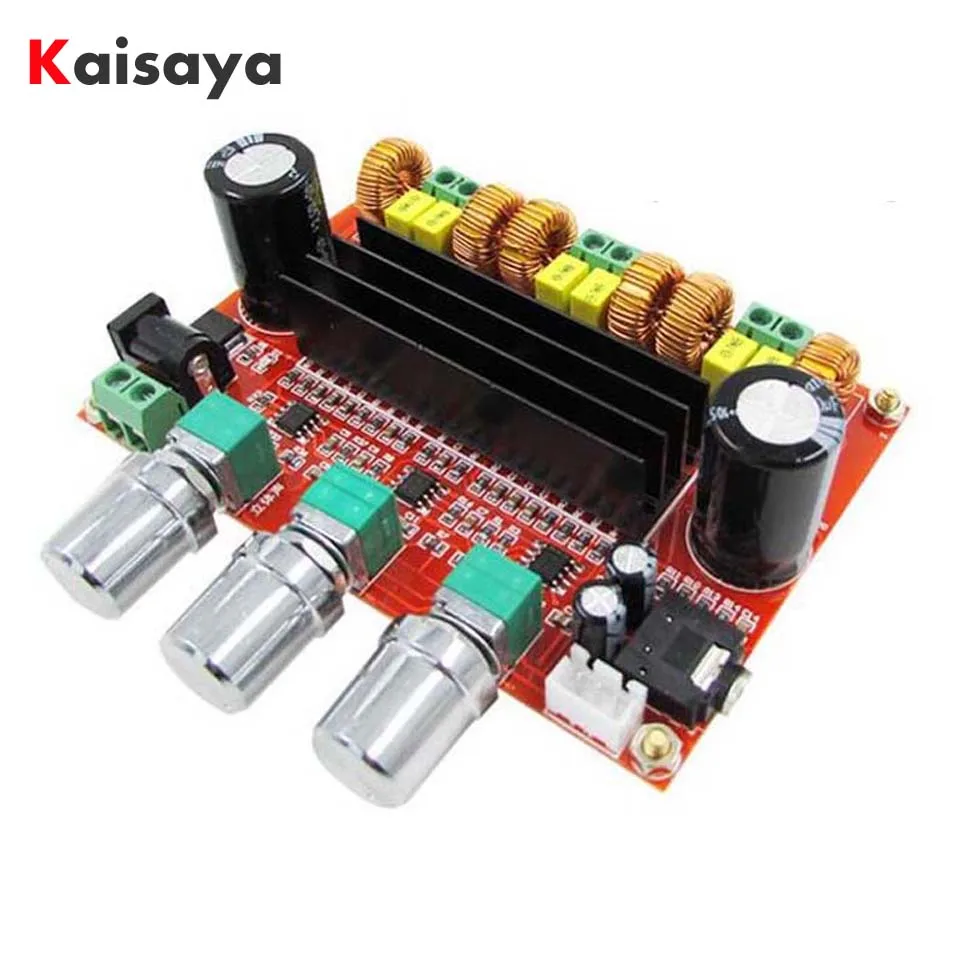

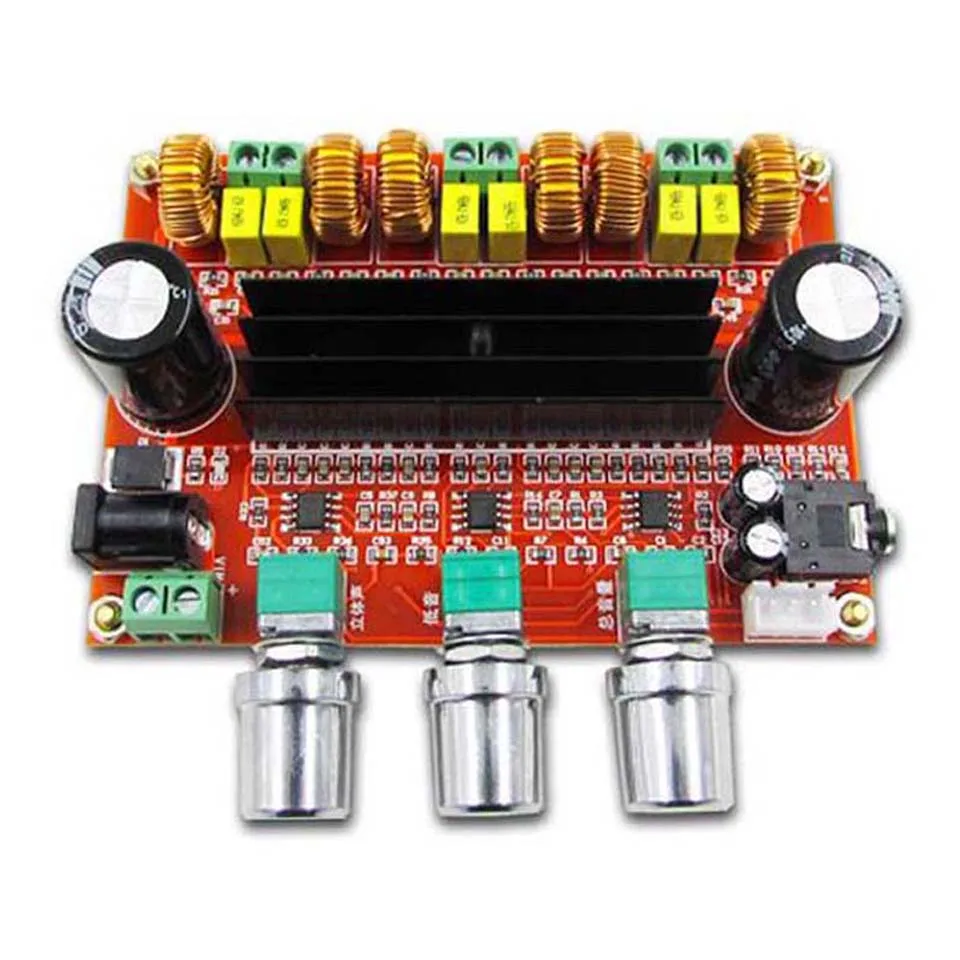

    TPA3116D2 DC12V-24V 2X50W+100W 2.1 Channel digital Subwoofer Amplifier Board

    1

    100%Brand New and High Quality

    The amplifier board adopts two imported TPA3116D2 digital amplifier chip as the core,one piece as left and right channel power amplifier,other piece as pre-bridge briver with NE5532 subwoofer ,with a small ,high effeciency,high power characteristics.

    Product name:2.1-channel audio amplifier
    Chip Select:TPA3116D2
    Supply voltage:DC 12-24V
    Output power:50W*2+100W Subwoofer*1
    Output Impedance:4-8 ohm
    Frequency range:14-100Khz
    SNR:100db

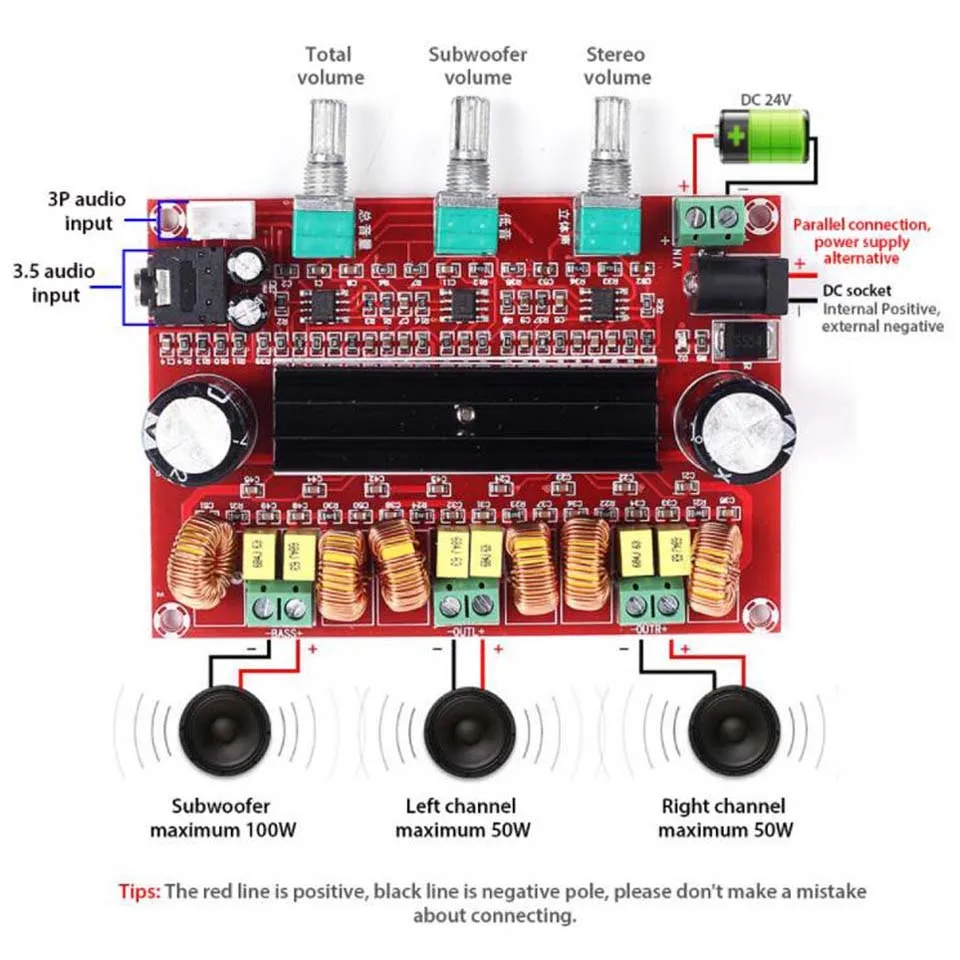

    Number of channels:3(left channel,right channel,subwoofer)
    Switch frequency:1.2MHz

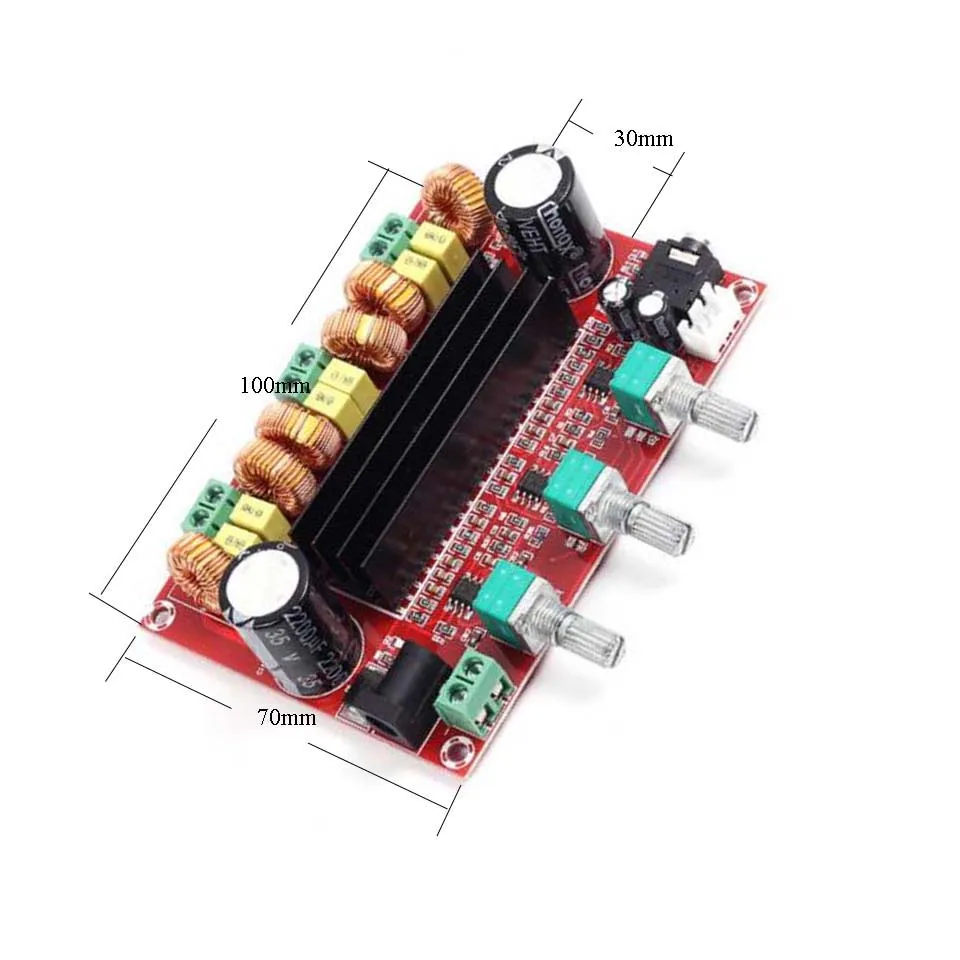

    Size:100*70*30mm
    ​Weight:136g

    Packaging
    1pcs*DC12V-24V 2*50W+100W XH-M139 2.1 Channel digital Subwoofer Amplifier Board Chip TPA3116D2

    2





    ksy1528937

    3

    11

     HTB1g6b9m25TBuNjSspmq6yDRVXaf23

    12

    810









    Incredible.. Foremost OK

    works perfect, i replace my old cambridge soundworks 2.1 amp with this. I love the sound and bass/treble option. I recomend this amp to rescue your old 2.1 PC speakers. It's also compatible with my old 12V power supply !

    The Package arrived in 3 Weeks in Very Good Condition, The Amplifier Packed in uthe foam wrapping; the Amplifier Board was very secure and protactive from any shocks, all look very good and I will test the Amplifier Booard very soon, awaiting 24 Volts 5 Amps Power Adapter delivery, I will Strongly Recommend the Seller, thank you

    Sounds good, 45 W speakers + 60wсаб shakes. Working in portable speakers, good amp, only thermal grease must be applied under the radiator. Seller in sales.

    павлово g нижегородской area to super fast shipping within 6 days. well packed, quality excellent, seller 5 stars

    Package Details

    • Unit Type:piece
    • Package Weight:0.18kg (0.40lb.)
    • Package Size:10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
