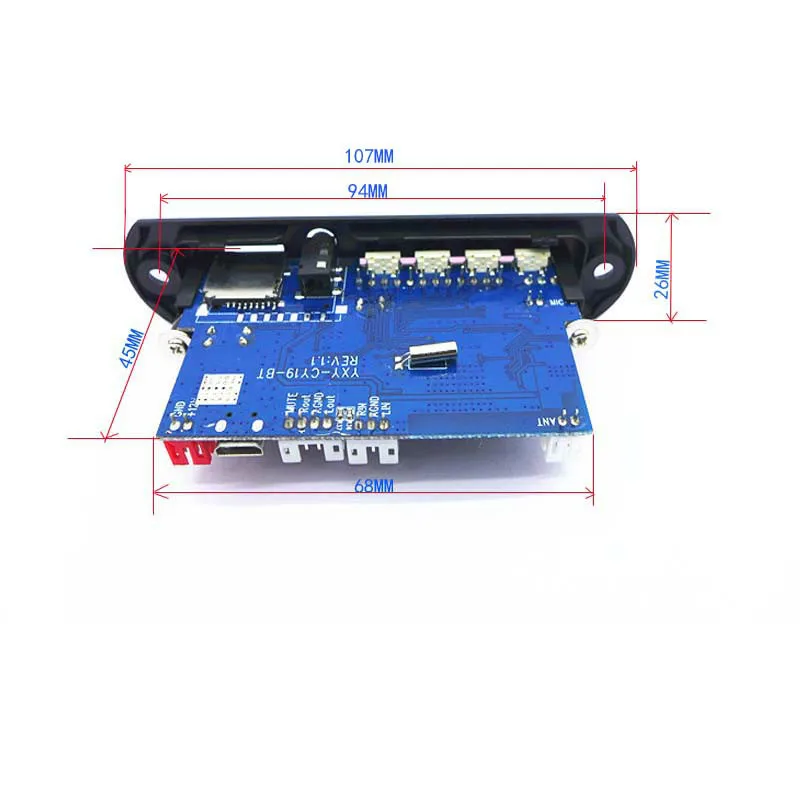

Aiyima Wireless Bluetooth 4.0 Stereo APE FLAC WAV WMA MP3 Decoder Audio Decoding Board Support FM APP Bluetooth Hands-free Call
Aiyima Wireless Bluetooth 4.0 Stereo APE FLAC WAV WMA MP3 Decoder Audio Decoding Board Support FM APP Bluetooth Hands-free Call
In time, just like in the description, the batteries are present. One of the best options. Excellent all functions. Recommend!
Bluetooth device received (second), since the first does not matter, after communication, the second sent tested repair works. But the quality is worse, first, metal parts are partly rusted, the entire board is filled with clotted rosin. Also during the inspection found torn off road main board to the bluetooth module. Campaign device lying around in a damp place in загашнике was waiting for me. Of Course thanks but I was shocked.
There was a delay in delivery due to holidays, China. All came in one piece. Powered by charging the phone (5c 1a) on headphones. Checked is only work USB-plays MP3, FLAC, ape. Play Ogg, ALAC. BT not tested-no source, radio we perform poorly. Folder switch can not be. The Player builds a list Of all songs on a flash drive, and then you can remote dial number songs (up to 999).
It's fast and fun. Thank You Very Much!
Excellent
Store Name: AiyimaTechnology Store
Normal Price: US $13.48
Sale Price: US $11.59 (Discount: 14%)
Spesifications
Descriptions
Product description:

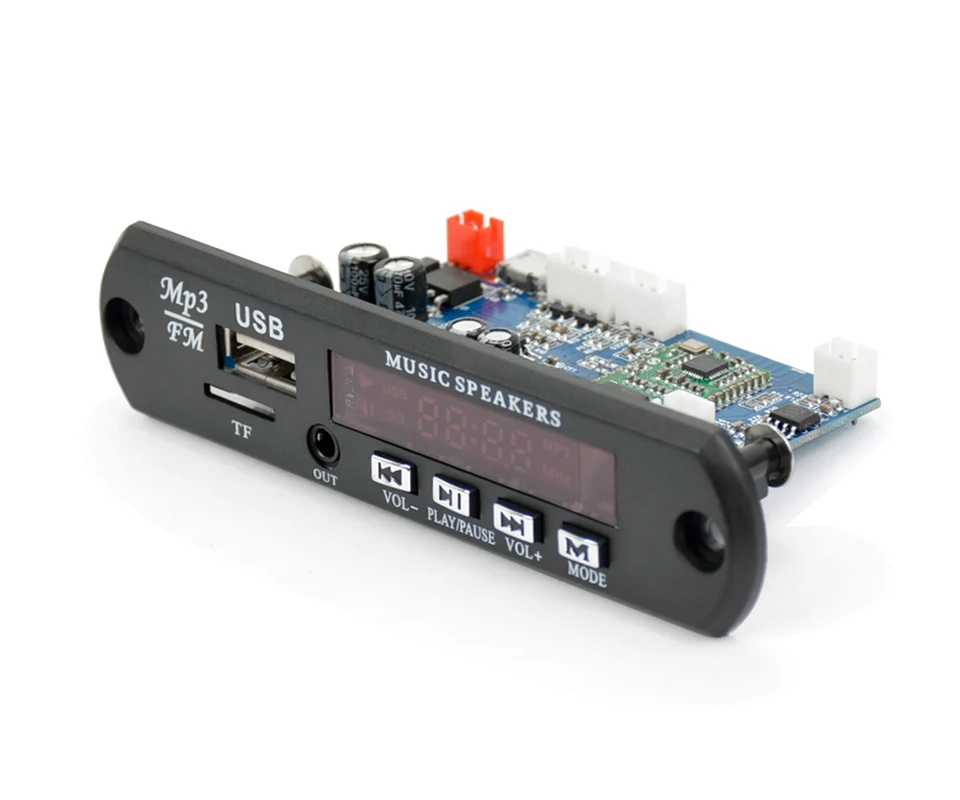

Buttons and controls：
host buttons (4 buttons: VOL- PLAY/PAUSE VOL+ MODE)
1 MODE: this key cycles to select playback mode.
2. VOL-: in the /BT playing short press for TF election on the song, as long as the volume decreases, the AUX state long press the volume down.
3. VOL+: in the /BT playing short press for TF card selection under the song, long press the volume increase, the AUX state long press for volume increase.
4.PLAY/PAUSE: /BT in TF card to play / pause playback status.
The default BT state, when the TF card is inserted, boot play tf card songs, when AUX is inserted automatically play AUX audio songs.
Operation procedure:
Boot description
Turn on the power, boot the device without the device, and default the Bluetooth
USB operation instructions
1, insert USB or press MODE to go to the USB state, load the file (read complete): display the current device icon (USB or SD), automatically enter, play, display, play time
2, in the "USB" status, press the panel or remote control "play / pause" button to enter the pause, the system automatically mute.
3, in the "USB" state, according to the panel or remote control on the "volume" button, press the volume, the number bigger; according to the volume reduction, smaller numbers. The volume level "0~32" displays the current volume level as follows:
4, in the "USB" state, according to press the "stop" button, the system automatically mute. Display the total number of tracks, then press the "play" button or remote control "stop" button to play from the first.
5, in the "USB" state, press the remote control on the "mute" button, the system automatically mute. The play time is normal now. Flashing screen.
6, in the "USB" state, press "0-9" on the remote control keys, can direct "USB" tracks, such as the selection of the first fifth, directly press the remote control 5; if 25, directly press the remote control 2, 5; for 215, directly press the number keys 2, 1, 5 remote control.
7, in the "USB" state, short press the cycle key, into the ALL (all loop) - ONE (single cycle), the display is as follows (boot default all round):
8, in the "USB" state, according to the "EQ" button on the remote control, enter the field mode select: JAZZ (Jazz), CLASSIC (classical), COUNTRY (Village), NORMAL (general), POP (POP), ROCK (rock) display three letters before (the default sound mode are as follows JAZZ):
10, in the "USB" state, according to a panel or the "remote control" and "next" button, can select and loop selections (such as the first in a can to the last song), display F+ file number (more than 1000 songs do not display F, directly display the file number) player.
Long press a "remote control" and "next" button to "rewind" or "fast".
SD operation instructions
The operation instructions with USB are just "USB" displayed instead of "SD" display
AUX operation instructions
1, according to the panel or the remote control of the "MODE" button, switch to the "AUX" state, or by remote control panel adjustment on the "volume" button, press the volume, the number bigger; according to the volume reduction, smaller numbers. The volume level "0~32" displays the current volume level as follows:
2, in the "AUX" state, according to the panel or the remote control on the "play / pause" button or press the "mute" button, the system automatically mute, flashing display.
The AUX block is marked on the circuit board
FM operation instructions
1, press the panel or remote control "MODE" key, switch to the FM state, the digital LED screen will display the current device information "FM", and show the last shutdown frequency, the last one for the frequency of small digits. 2, in the "FM" state, according to the panel or remote control on the "volume" button, press the volume, the number bigger; according to the volume reduction, smaller numbers. Volume level "0~32"",
3, in the "FM" state, according to the panel or the "PLAY/PAUSE" button on the remote control, the automatic station search, from low-end to high-end, search after the automatic deposit
Bluetooth operation instructions
1, press the panel or remote control "MODE" key, switch to the BT state, the digital LED screen will display the current device information "BT", and lit the Bluetooth icon.
2) search and pairing (device name: YXY-CY19)
The icon "200ms" flashes, the connection is successful, often light, and the bLUE is still lit
3) play
The icon "blinks" at 1S intervals, and the bLUE is still lit
4) pause
The icon is not blinking, usually bright, and the bLUE is still lit
5), or by remote control panel on the "volume" button, press the volume, the number bigger; according to the volume reduction, smaller numbers. The volume level "0~32" displays the current volume level as follows:
6) if the device is turned off or not connected within the communication area, the connection fails. Search again. Bluetooth disconnects will also have a beep
7) Bluetooth player, you can press the panel or remote control of the upper / lower song, play / pause control of the phone player to do the appropriate operation,
Connect headset description
Plug the headset into the OUT headphone hole on the panel and listen to the song.
Bluetooth hands-free calls:
1. audio and mobile phone after a successful connection, when a call comes in, the speakers will make a "beep" prompt tone, ,the LED display” C IN”; telephone press "play"button answer can replace the mobile phone to talk with each other, ,the LED display” C HF” then press "play"button hang up the phone call ended.
2. In the connection of double click the "play"button can redial the [Dialed numbers] last group telephone, the LED display” C OUT”.
Such standards have not tested
ok
Nice packing with box.
Package Details
- Unit Type:piece
- Package Weight:0.07kg (0.15lb.)
- Package Size:10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
